Using Schemaless Changesets to Separate Concerns Between the Web Context and the Business Context

Posted on

This post was originally written for my old ElixirFocus blog, and transfer here after its closure.

With schemaless changesets you have the power to hand craft validations for specific web form presentations and define firm boundaries of responsibilities between your web presentation layer and the business-specific contexts of your app.

It’s a story we can all relate with. A new app is born using mix phx.new hello.

Some mix phx.gen generators are used to begin to shape a solution, perhaps something like:

$ mix phx.gen.html Blog Post posts body:string word_count:integer

And then over time the Post schema grows. Different web forms are needed and so multiple changeset functions are added for the diverging user tasks. You might even start adding virtual fields to schemas just to handle web form needs.

It gets to a point where no one wants to edit or refactor the schema since it has grown too large and complex.

How do get we get out of this mess?

Part One: Break Things Down

When you find yourself with a large schema I would first look to how you can break down this BIG noun into other smaller nouns.

Perhaps you have a large User entity. Maybe you could isolate and extract some of its responsibilities. Maybe introduce a Credentials entity and a user has many of them. Maybe break out a Profile and a user has one of those.

Perhaps you have an Notification entity that is being mutated to track its progress through some kind of delivery process to a third party. Maybe instead of an ever mutating string value of status you introduce a new entity for DeliveryAttempt and then notifications can have many of those and derive a status. With less mutation you likely will need less changesets functions and the code will naturally be more focused.

Breaking down domain concepts into smaller structures can improve the expressiveness and clarity of a codebase. Now, while I hope this little reminder can help brainstorm ideas for your own project there is another sneaky issue at play in our story and that is the changeset dependency problem.

Part Two: Breaking Your Changeset Dependencies

As useful as Phoenix generators can be to stand up a basic app, or to get through a tutorial introducing you to concepts about the framework, there is a dark pattern you would be wise to acknowledge if accepting its compromise.

In an ideal scenario an Ecto.Changeset should NOT have a dependency through line from an app’s business context into the web controller and onto the web form of the page.

Letting a changeset that low in the stack influence the web forms is dangerous.

Lets explain.

First, having any chunk of code touch too many layers begins to handicap your ability to refactor. I tend to align with the thought that “Good Code Is Easy To Change Code”. If you are looking for a simple measurement when evaluating the quality of a codebase, changeability is as good as any principle to lean on.

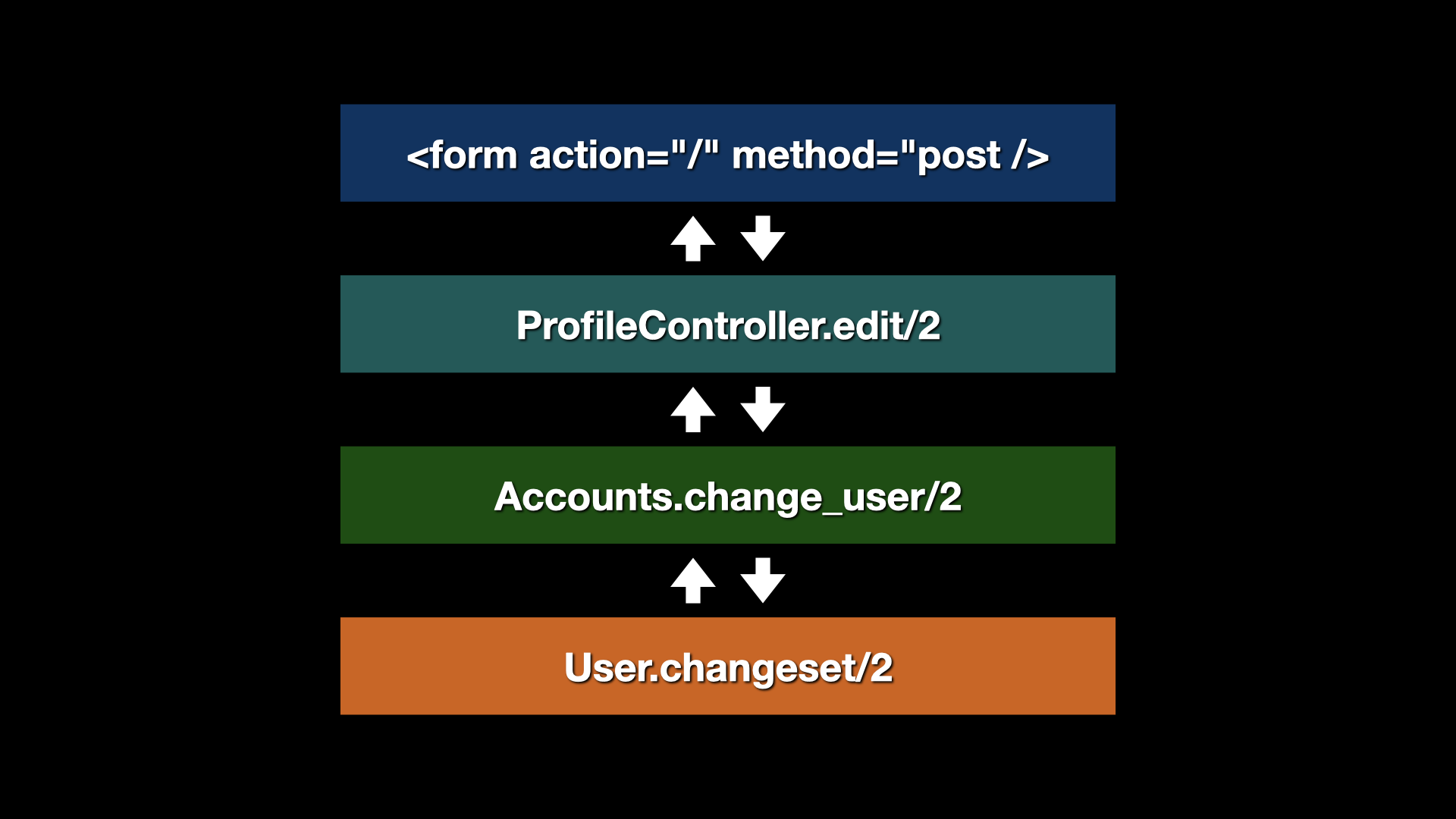

Visual showing four layers of a typical Phoenix app.
A common but brittle approach that creates strong dependencies across all the layers.

Second, having low stack changesets dictate web form behavior creates a dysfunctional approach to user experience design where you force the user to represent their work as it will (eventually) be persisted in a database table row. In an ideal situation you’ll be crafting custom web forms to capture user intent and then transform the incoming data into the needed persistance format. Do not let the database dictate the user interface!

Using Schemaless Changesets

So with all of that said, how does one use a schemaless changesets?

Normally if you had a defined an Ecto schema like Registration you’d build a changeset with code like:

fields = [:first_name, :last_name, :email]

changeset =
  %Registration{}
  |> Ecto.Changeset.cast(params["sign_up"], fields)
  |> validate_required(...)
  |> validate_length(...)

Creating a schemaless version is super easy and very much the same. Instead of starting the pipe with a schema type you instead start it with a simple tuple containing the data and some metadata about the data’s types.

data = %{}
types = %{name: :string, email: :string}

# The data+types tuple is equivalent to %Registration{}
changeset =
  {data, types}
  |> Ecto.Changeset.cast(params["sign_up"], Map.keys(types))
  |> validate_required(...)
  |> validate_length(...)

The data in this case can be a simple Map or a more defined struct. For example, in the RetroTaxi project there is a web form presented on the home page and so I built a Struct to represent the request like:

defmodule RetroTaxi.BoardCreation.Request do
  defstruct [:board_name, :facilitator_name]

  @type t :: %__MODULE__{
          board_name: String.t() | nil,
          facilitator_name: String.t() | nil
        }
end

Later when creating a changeset we use this schemaless pattern:

def change_request(%Request{} = request, attrs \\ %{}) do
  types = %{
    board_name: :string,
    facilitator_name: :string
  }

  {request, types}
  |> Changeset.cast(attrs, Map.keys(types))
  |> Changeset.validate_required([:board_name, :facilitator_name])
  |> Changeset.validate_length(:board_name, min: 1, max: 255)
  |> Changeset.validate_length(:facilitator_name, min: 1, max: 255)
end

Other than this difference, you can use the changeset with the Phoenix form tool just like before.

I’ll also take a moment to give a nod to the embedded_schema Ecto type which can be used here in place of the arbitrary Struct or Map; see the documentation for a full sample. My gut tells me to isolate usage of things called “schemas” to entities or values that will end up in the database for a greenfield project, but it’s a small preference. I also like the idea that the concepts of “changeset” need not be limited to the Ecto library.

The Missing Error Gotcha

The one issue you may run into with this schemaless changeset approach is that as you test validations on your web forms you will not see any errors. The reason for this is that traditionally the changeset you render in a POST request will come out of a Repo.insert/2 or Repo.update/2 error tuple and that changeset will have its action attribute set to a non-nil :insert or :update value. The Phoenix web form tools use the presence of this value as a signal to render the errors. For us, this means we need to set action explicitly like the sample below.

  def process_request(request, user_id) do
    changeset = change_request(request, %{})

    case changeset.valid? do
      false ->
        # In the first published version of this post we edited the `action` directly but
        # it is probably safer to use the defined `apply_action` function, though the
        # result is pretty much the same.
        # {:error, %{changeset | action: :insert}}

        # We need to force an action value so the Phoenix forms will display the errors.
        # Code is more explicit here for demonstration purposes.
        {:error, changeset_with_action} = Ecto.Changeset.apply_action(changeset, :insert)
        {:error, changeset_with_action}

      true ->
        # Perform the actual request.
    end
  end

Conclusion

With schemaless changesets you have the power to hand craft validations for specific web form presentations and define firm boundaries of responsibilities between your web presentation layer and the business-specific contexts of your app. Lots of people will not invest in this separation of concerns, and depending on the life-cycle of the application and the needs of your users that might be fine. If however, you find yourself making multiple flavors of changeset or adding lots of virtual fields to a schema just to make the web forms fit in – it might be time to rethink your approach.
